EKILNE2B

Color

Matt Black NOW Available.

Traditional pizza, perfected.

DUAL BURNER PIZZA OVEN WITH STONE ROTATION AND DIGITAL DISPLAY

The KILN DR Series pizza oven is uniquely designed to deliver an effortless and authentic cooking experience at home.

With its multifunctional capabilities, the KILN DR can cook a large pizza in under two minutes, as well as sear or bake a range of dishes. Featuring an automatic rotating turntable, U-shaped burner, and under-stone burner, the KILN DR removes the need to manually turn your pizza and achieve an even cook and perfectly crisp base every time.

The integrated digital display enhances control and convenience, providing real-time temperature readings, visual heat indicators, and rotation status for effortless precision.

Easy to set up, cook, clean, and store, the KILN DR brings performance and modern design to your outdoor entertaining space.

Available in: Matt Black & Woodlands Green (Special Edition only available at Harvey Norman)

Colour in images may differ slightly from product.

Product Manual

$999.00
/

• Available in LPG or Natural gas type
• Digital display to enhance your experience with temperature readings (stone and oven), visual temperature guide, rotation indicator and under-stone burner indicator
• Automatic turntable rotation
• Rotating turntable powered by battery or mains, removing the need to turn pizza manually
• Use as a multifunctional oven to cook a range of other dishes
• Sleek, contemporary design
• Dual-insulation body, maximizing internal heat for energy efficiency
• Room to fit a large 16” pizza or a range of bakeware & cookware
• Cook the perfect pizza in approximately 2 minutes
• Removable pizza stones for easy clean-up
• Designed to fit common-sized benchtops
• Under-stone burner for a perfectly cooked base every time
• U-shaped burner for even heat distribution when cooking
• 28 MJ / 9.2kW / 2-burner output (LPG / Propane)
• 26.4 MJ / 9.2kW / 2-burner output (Natural Gas)

Product dimensions:
• Width: 660mm
• Depth: 740mm
• Height: 380mm
Packaging dimensions:
• Width: 820mm
• Depth: 740mm
• Height: 435mm

• Net weight: 31.8 kg
• Gross weight: 41.5 kg

• 1 x KILN DR Series chassis
• 1 x Display
• 1 x LCD connector protective cover
• 1 x 16 inch round pizza stone
• 1 x front pizza stone
• 1 x power adaptor
• Instruction manual
• Hose and regulator - Gas pressure 11 WC (Propane Version)
• Hose and regulator - Gas pressure 4 WC (Natural Gas Version)
You will require 7 x AA batteries (6 x Display & Turntable, 1 x Electric Ignitor) – batteries are not included.

Pairs well with

MANUALS & GUIDES

Instant, powerful heatTraditional pizza with a new spin

Beyond pizza, the KILN DR Series can sear, roast, or bake a variety of dishes, making
it a versatile outdoor oven. With
a U-shaped burner for even heat and an under-stone burner for a crisp base, the
KILN DR delivers authentic results in minutes.



New User InterfaceAccurate Cooking Information

An integrated digital LED display enhances control and convenience, showing
real-time stone and oven temperatures, rotation status, under-burner status,
and battery levels. Easily switch between °C and °F to suit your preference

Multi-Functional Oven

Beyond pizza, the KILN is a versatile oven capable of searing or baking a range of dishes, making it a multifunctional addition to your outdoor kitchen.

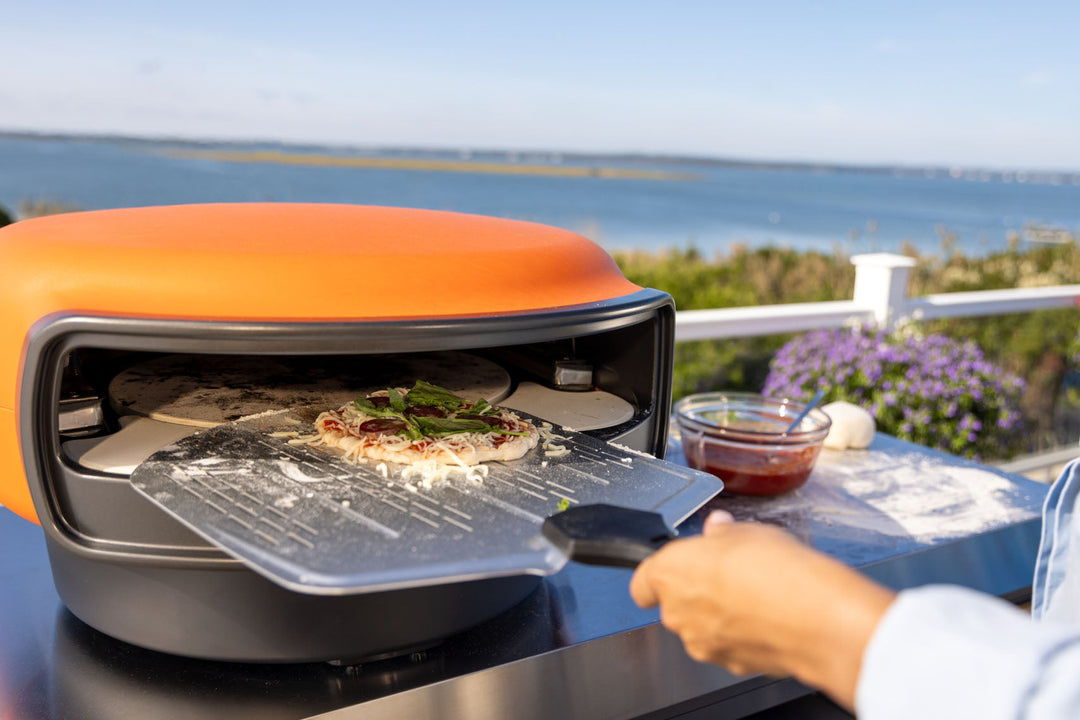

Round Pizza Stone for KILN

Dual burners

The U-shaped burner ensures even heat distribution for consistent cooking, while the under-stone burner delivers the perfect pizza base every time.

FAQs

Learn more

What is the cooking size?

The KILN DR Series can cook a 16" pizza and can fit various bakeware and cookware. The mouth of the KILN DR Series is 3.62in | 92mm high, we recommend not using bakeware and cookware higher than 2.95in | 75mm.

Are any accessories included?

No, accessories are sold separately. You can check them out under Accessories on our website.

What batteries does the KILN DRSeries take?

7 x AA batteries - 1 x for ignition and 6 x for display and turntable

How do I set up/assemble the KILN DR Series?

Remove all packaging and recycle as per your local government laws. Place the KILN on the Pizza Station or similar benchtop. Insert the T-stone.

To install the batteries, open the battery compartment cover. Load a set of 6 new AA type batteries into the battery box, ensuring the plus (+) and minus (-) ends are in the correct position, then refit the cover. Alternatively, connect the KILN to mains power. Unscrew the pulse igniter cap to fit one new AA type battery, ensuring the plus (+) and minus (-) ends are in the correct position, then refit the cap. Close the battery compartment cover.

Make sure the burner knobs are turned
off, then connect the gas hose to the KILN. The KILN can only be used in an above-ground open-air environment with natural ventilation. DO NOT use the KILN indoors.

What surface can I place the KILN on?

We recommend placing your KILN DR Series on a heat-resistant surface, such as metal or stone. We highly recommend NOT placing your KILN on glass, plastic, or fabrics e.g. tablecloths

What safety devices are installed in the KILN DR Series?

Flame Safeguard System - The gas valve on this appliance has a flame safeguard built in for added safety; when gas flow is stopped in the event the flame is extinguished without using the control knobs

Can I use my KILN DR Series in adverse weather?

We don’t recommend using the KILN DR Series in adverse weather conditions, and suggest reviewing your local forecast
before cooking

How long does it take for the KILN DRSeries to cool down?

The KILN and pizza stones may take up
to 2 hours to fully cool down

What are some tips to ensure the KILN is used safely?

Wear heatproof gloves when handling
hot dishes

Use caution when inserting &
removing dishes from the KILN.

Avoid contacting the front fascia
surface as minor scratches may occur

Use caution with the stones - they
can retain heat for many hours after cooking.

Do NOT submerge the stone in water

Gas and ignition

How do I ignite my KILN DR Series?

Prior to cooking for the first time,
turn the burner on high for 30 minutes, then turn off and let the oven cool
down. Once cool, use a paper towel to wipe away any soot inside. Be careful,
the oven may still be hot in some places.

Push the main burner knob in and
slowly turn it anti-clockwise until you hear it click (8-10 seconds). Hold in
for another 10 seconds after ignition, then release. Set the burner to your
desired position.

Repeat with boost burner knob and
press the button to activate the rotating turntable.

If the burners do not ignite, leave
the knobs at OFF and wait 5 minutes before trying again.

Once ignited, leave on high for
approximately 10 minutes to heat the stone.

The KILN is ready to use once it has
reached your desired temperature. Check this by monitoring the digital display
reading of the stone and oven temperatures. Turn the main burner knob halfway,
then begin cooking

WARNING: Do not leave the boost
burner activated for an extended period of time without the turntable running,
as it may damage the stone

What kind of gas tank should I use with the KILN?

Refer to your instruction manual that was supplied in your box or contact your local dealer

Can I use butane and/or natural gas?

Refer to your instruction
manual that was supplied in your box
or contact your local dealer

How much gas will the KILN use?

Refer to your instruction manual that was supplied in your box or contact your local dealer

Do I need to use a cover on my BBQ?

Refer to your instruction manual that was supplied in your box or contact your local dealer

Cleaning & maintenance

How do I clean the KILN?

Before cleaning, ensure the KILN DR
Series and stones have cooled and are safe to touch. We recommend testing
cleaning materials on a small section of the KILN DR Series first.

Clean the outside of the KILN DR
Series with mild detergent and a clean cloth. Dry with a clean cloth. Clean the
inside of the KILN DR series with soapy water and a sponge or mild scourer. For
hard-to-clean areas, use a small amount of baking soda on a wet sponge. Dry
with a clean cloth, then refit the stones.

Place the protective cover on the
KILN when it’s not in use.

How do I clean the burners/ignition?

Use a soft bristle type brush to clean the burner and ignition

Are the stones dishwasher safe?

No, the stones are not dishwasher safe.

How do I clean the stones?

Before removing and cleaning, ensure
the stones have cooled and are safe to touch. Carefully remove the stone from
the KILN DR Series. Using the Pizza Oven Brush or similar, brush and scrape
away particles. Wipe clean with water and a cleaning brush or sponge, then
thoroughly dry with a clean cloth.

USE CAUTION - stones can retain heat
for many hours after cooking. Do NOT submerge the stone in water

Can I use phosphoric based cleaning solutions?

Do not use phosphoric based cleaners. It is
recommended to use a gentle bicarbonate soda paste.

Will the cover keep the KILN DR Series dry?

The cover is made from heavy-duty
water-resistant material, designed to protect your KILN DR Series from the
elements. Please keep in a dust free environment

How do I store and maintain my KILN?

After each use, ensure you thoroughly clean your KILN DR Series.After the unit has cooled down and has been cleaned, place the protective cover on the KILNDR Series. We recommend storing the KILN DR Series under cover, away from harsh weather environments to increase longevity. When not using the KILN for an extended period of time, ensure you occasionally wipe the internals and externals clean to prevent dust build-up.

Troubleshooting

Where can I find basic troubleshooting information?

Basic troubleshooting information on the KILN DR Series can be found within the
user manual

What do we do if something is broken or not working correctly?

Contact our customer service team HERE for service support.

How can I stop the oven from over heating?

Turn it down. Running the appliance
for an extended period of time with the main burner on the high setting could result in damage to your appliance

What do I do if the burners won't ignite?

Check to see if; the cylinder valve
is on, the cylinder is full of gas, the battery is correctly placed in the ignition slot, and the batteries are fully charged. Please contact your local service center/dealer if all of the above are ok

Will the KILN change over time?

The appearance of the KILN may change
over a period of time, depending on the climate conditions, usage of the oven
and how well it has been maintained by the user.

The KILN has an uneven flame?

Turn off the main burner, allow to cool and re-ignite. If you still have an uneven flame, please contact your local dealer or our customer care team via the 'Contact
Us' form

The KILN isn't getting hot enough orhas an underpowered flame?

Check your gas bottle and connection.
Follow the ignition procedure in the instruction manual. If you continue to have this issue please contact our customer care team or your local dealer

The flame is cutting out?

Check your gas bottle and connection.
What are the current weather conditions? If windy, this may be causing the flame to go out. Follow the ignition procedure in the instruction manual. If you continue to have this issue, please contact our customer care team or your local dealer

The KILN DR Series turntable isn't turning?

Check that the power cord from the power adaptor is connected correctly and that the power is on at the main power board.

Check if batteries are fitted and are
properly installed in the battery compartment. Check if batteries are full of
charge and replace if needed. If you have any further issues please contact your local service centre or dealer
